Haibike AllMtn 2

Haibike AllMtn2

Tricky root passages, flow trails or radical climbs: With our ALLMTN 2 you can choose your own way. Thanks to 160 mm travel and the wheel mix of 29" at the front and 27.5" at the rear you will be rolling downhill over any obstacle with ease, whilst still enjoying perfect traction on those steep uphills. The compact and powerful Yamaha PW-X3 motor with 720 Wh battery gets you up the mountain in no time and ensures guaranteed fun in any terrain.
£ 4599

Yamaha PW-X3  - The drive unit for pure trail ePerformance without compromise

Through a complete drive unit redesign, PW-X3 delivers 85Nm of motor torque throughout a wide cadence range. The PW-X3 design is committed to motor performance, keeping the high torque output figures despite the drastic size and weight reduction.

Right from the beginning, every PW-X series drive unit has featured the 128mm ISIS interface bottom bracket axle that gives the best Q-factor in any e-bike system. Yamaha Motor’s new PW-X3 continues with this idealized layout, making it especially attractive to expert riders.
Exclusive mechanical components and control program realize an unparalleled level of maneuverability. The reduced backlash of the ratchet mechanism and lightweight designs for major moving parts, such as the axle shaft and reduction gear, contributes to a quicker, more direct response to pedaling.
Fundamental design choices create the Yamaha distinctive feature of providing instant support with full torque immediately after pressure is applied to the pedal, not after certain crank turn.

The new PW-X3 is approximately 20% smaller and 10% lighter than the PW-X2 model. Its ultra-compact dimensions offer e-bike manufacturers greater freedom to develop nice-looking bikes aiming for ideal frame geometry and suspension kinematics, as well as increased ground clearance.


Yamaha PW-X3

Drive Unit Center Motor

Weight 2.75 kg

Rated Power 250 W

Max. Torque 85 Nm (EXPW)

Max support Speed 25 km/h

Support Mode 5 modes
                     -EXPW
                     -HIGH
                     -STD
                     -ECO
                     -+ECO

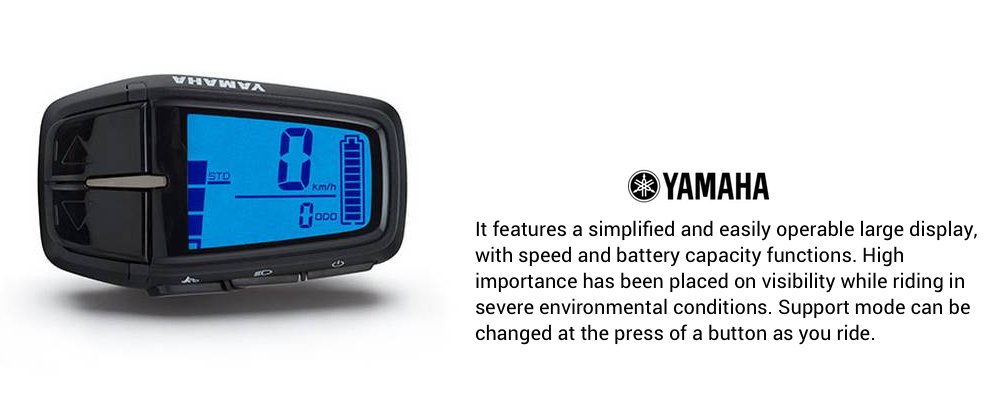

Yamaha Side Switch Display
The Yamaha Side Switch eBike Display is neat and sits over to the left side of the handlebars. Offering the rider vital stats on the fly whilst keeping the cockpit area clear and clutter free. The 1.7″ LCD display offers the quick reading of stats like Speed, Battery Capacity & Assist Mode.
